GS-24

OLYMP ELECTRONIC COM - ROLAND SRBIJA BEOGRAD PLOTER CUTTER GS-24

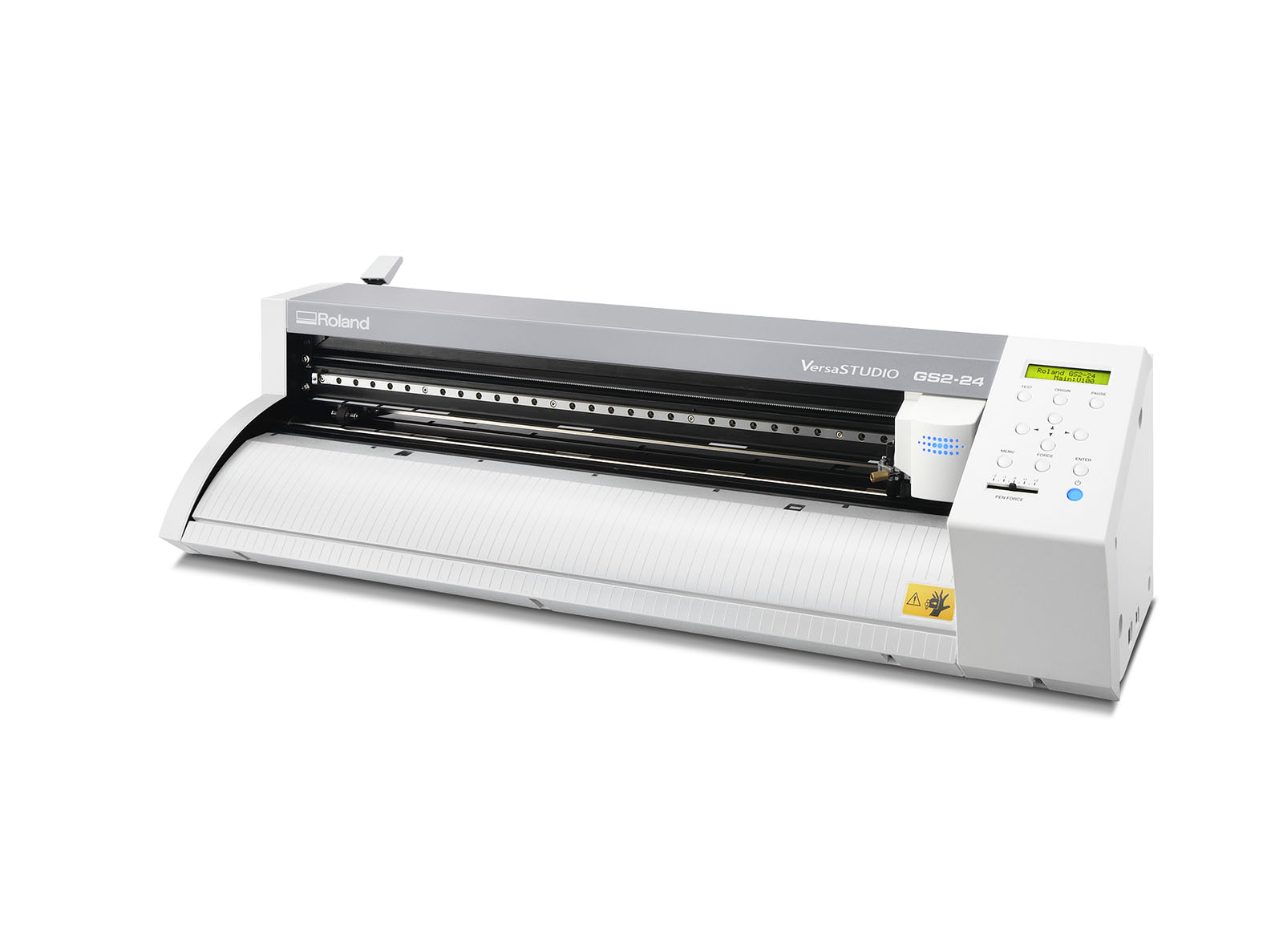

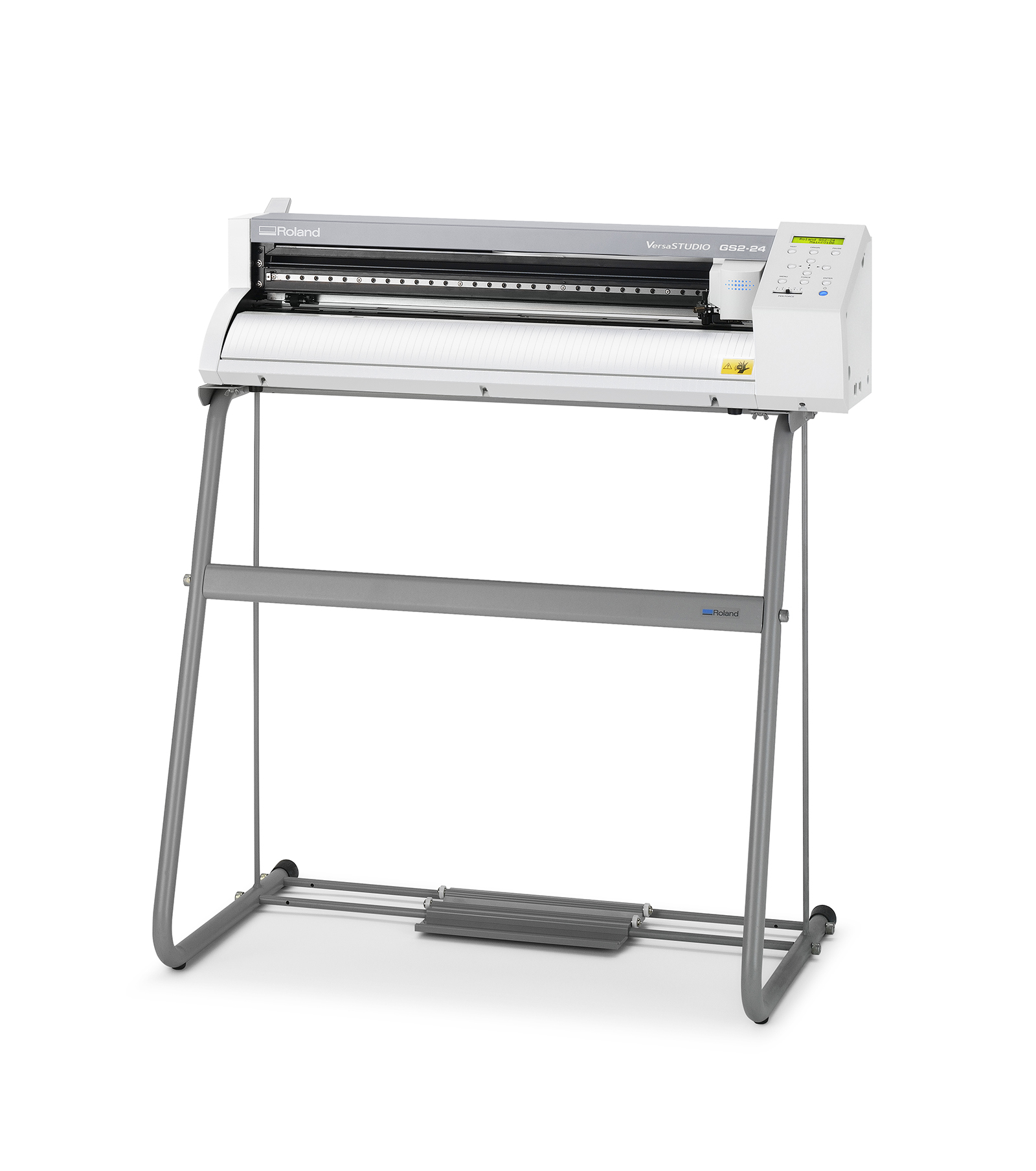

The Roland CAMM-1 GS-24 desktop cutter is precision and efficiency – to the max.

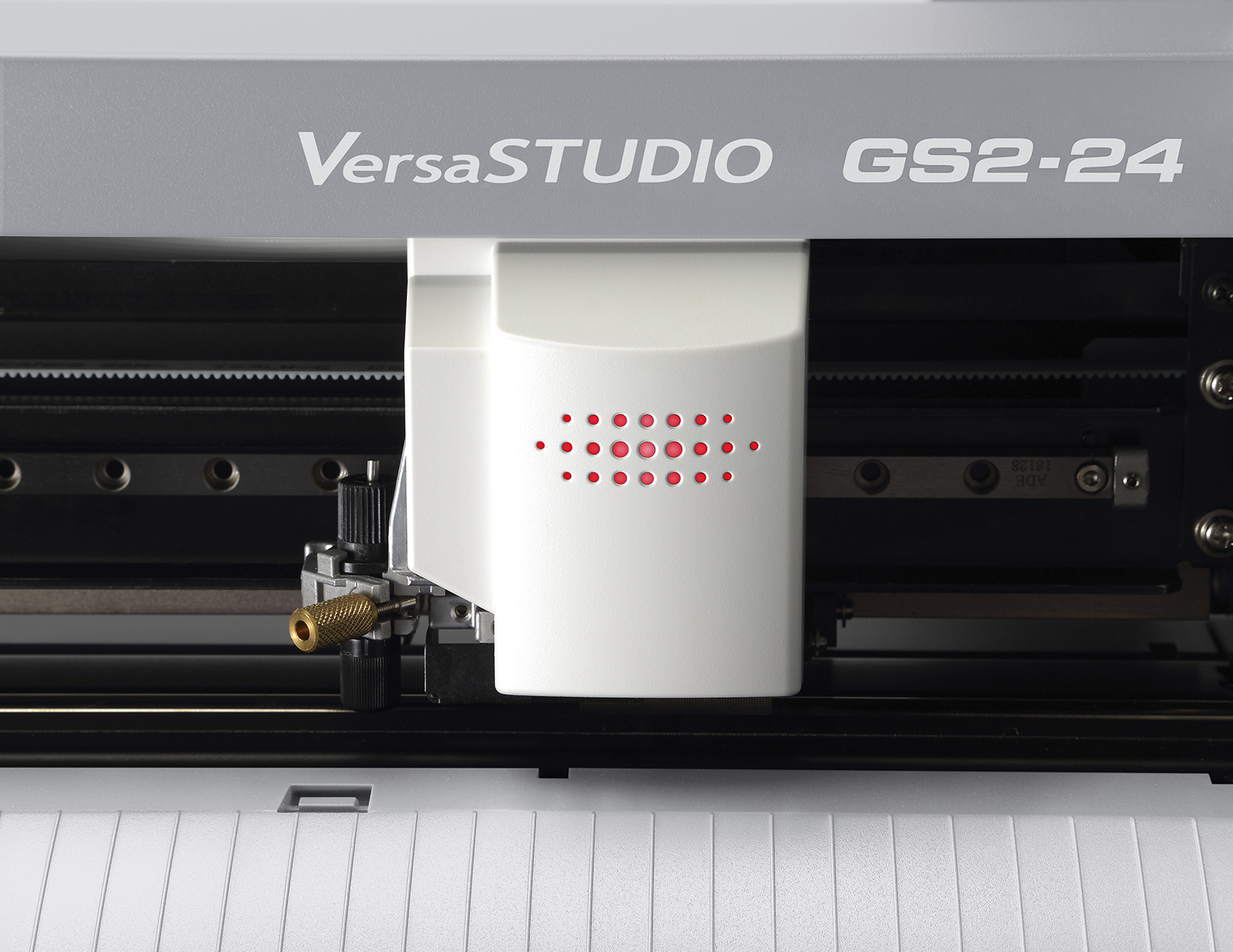

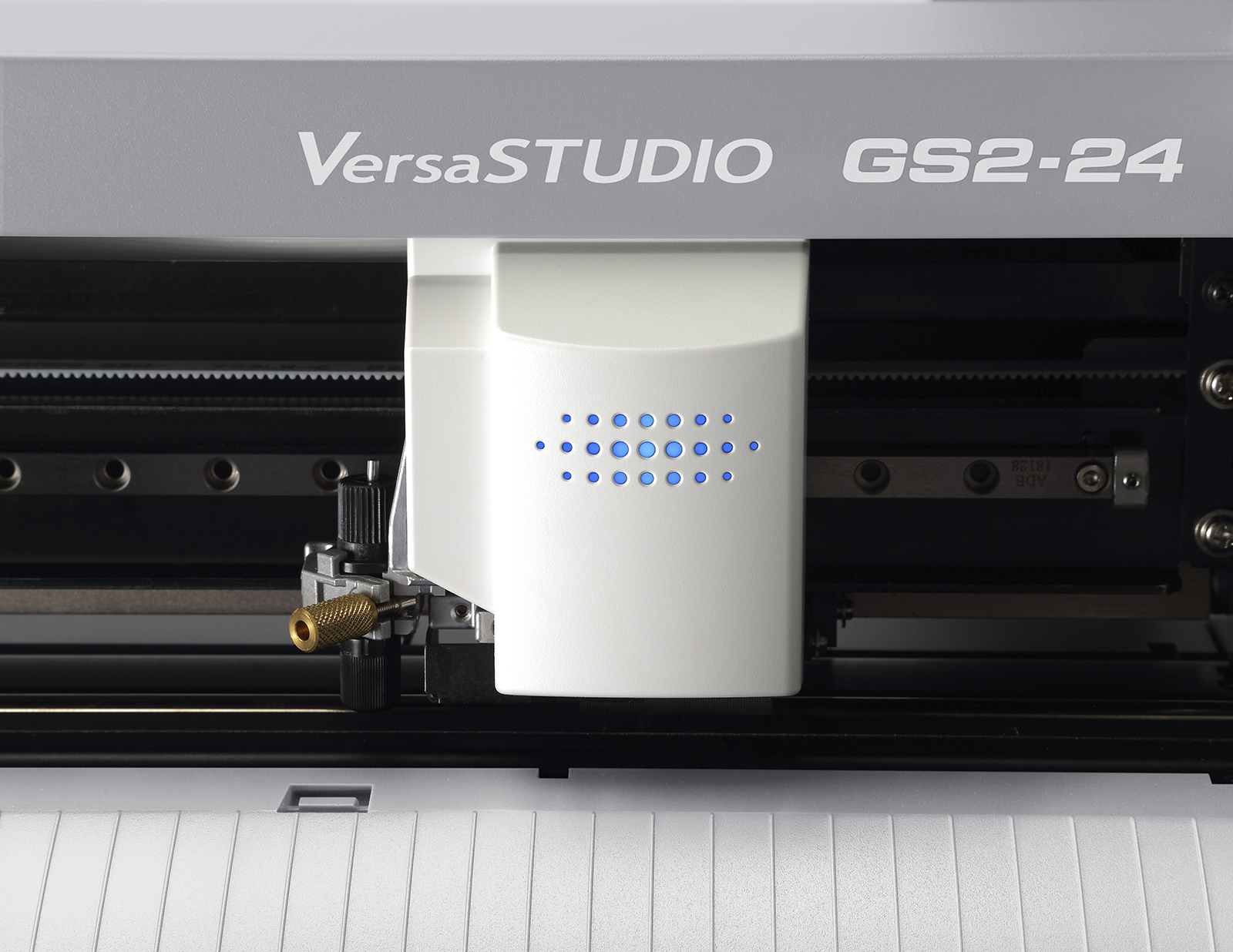

With a completely redesigned cutting carriage and blade holder, the GS-24 offers greater stability and a 40% increase in downforce (from 250g to 350g).
Translation: you can cut like never before – even on thick,
dense substrates. Vehicle Graphics. Signs & Decals.
Decorated Apparel. Specialty Graphics. And more.
The GS-24 is Roland’s best desktop cutter ever.

Overlap Cutting (up to 10x), for cutting thicker media like magnetic materials and card stock.
Perforated cutting function makes it easy to create labels and decals ready for individual sale.
Efficiently cuts up to 500mm per second, providing maximum productivity.
Play well with a number of different materials – like vinyl, paint mask, reflective vinyls, twill, heat transfers, sandblast material, and more.
Roland CutStudio (included) allows you to cut TrueType fonts without the need for outlining and vectorization tool generates cut lines from any JPEG or Bitmap image.

OLYMP ELECTRONIC COM - ROLAND SRBIJA BEOGRAD PLOTER CUTTER GS-24OLYMP ELECTRONIC COM - ROLAND SRBIJA BEOGRAD PLOTER CUTTER GS-24OLYMP ELECTRONIC COM - ROLAND SRBIJA BEOGRAD PLOTER CUTTER GS-24OLYMP ELECTRONIC COM - ROLAND SRBIJA BEOGRAD PLOTER CUTTER GS-24OLYMP ELECTRONIC COM - ROLAND SRBIJA BEOGRAD PLOTER CUTTER GS-24

Katalog ROLAND GS-24 0.68MB

download file

GS-24 Specification

ROLAND GS-24 Specification

Driving method Digital control servo motor
Cutting method Media-moving method
Loadable material width 50 – 700 mm
Maximum cutting area Width: 584 mm Length: 25000 mm (22.9 in. x 984 in.)
Acceptable tool Special blade for CAMM-1 series
Maximum cutting speed 500 mm/s (20 in./s) (all directions)
Cutting speed 10 – 500 mm/s (all directions)
Blade force 30 – 350 gf
Mechanical resolution 0.0125 mm/step
Software resolution 0.025 mm/step
Distance accuracy*1 Error of less than ±0.2 % of distance traveled, or ±0.1 mm, whichever is greater
Repetition accuracy*1*2 ±0.1 mm or less
Alignment accuracy for printing and cutting when loading printed material*1*3 ±1 mm or less for movement distance of 210 mm or less in material-feed direction and movement distance of 170 mm or less in width direction (Excluding effects of printer and/or material)
Interface USB 2.0
Replot memory 2 MByte
Instruction system CAMM-GL III
Power supply Dedicated AC adapter
Input: AC 100 to 240 V ±10 % 50/60 Hz 1.7 A
Output: DC 24 V, 2.8 A
Power consumption Approx. 30 W (including AC adapter)
Acoustic noise level During operation: 70 dB (A) or less (according to ISO 7779)
During standby: 40 dB (A) or less (according to ISO 7779)
Dimensions 860 (W) x 319 (D) x 235 (H) mm (33.8 (W) x 12.5 (D) x 92.5 (H) in.)
Weight 13.5 kg (29.8 lb.)
Packaging size 975 (W) x 450 (D) x 390 (H) mm (38 (W) x 17.7 (D) x 15.3 (H) in.)
Packaging weight 18 kg (39.7 lb.)
Environment Temperature: 5 to 40°C (41 to 104°F), humidity: 35 to 80 % (no condensation)
Included items AC adapter, power cord, blade, blade holder, roller base, alignment tool, USB cable, Set Up guide
