A Unique Way to Add Text, Monograms and Photos

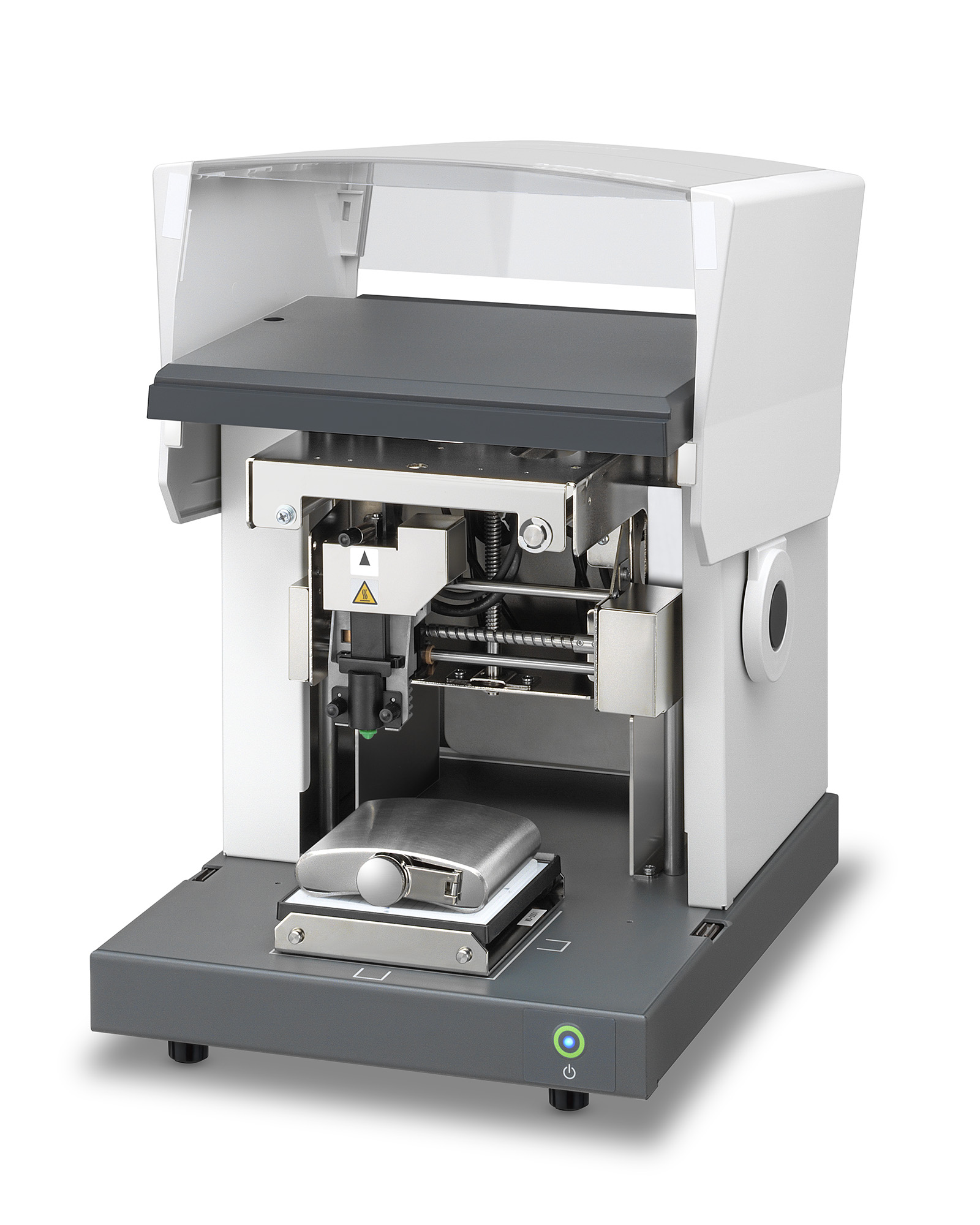

Based on the Roland Photo Marking System (RPMS), the MPX-90 uses a durable diamond-tipped stylus to imprint on a wide range of surfaces including harder metals such as iron, titanium, stainless steel, gold, silver and platinum. It can also be used to imprint resins including acrylic. This innovative system strikes the surface to be marked with high speed and precision to reproduce the most delicate gradations of your original design. The MPX-90 does not burn or remove material on impact for a clean operation free of odor and debris. No daily maintenance is required.
*HV hardness of a material must not exceed 200. Some shapes cannot be imprinted. Test materials for best results.
Imprint Both Small and Large Items
The MPX-90 features a work area of 80mm x 80mm (3.1” x 3.1”) and accepts items as thick as 40mm (1.5”). Its redesigned work table allows you to insert items of virtually any length. The MPX-90 includes a center vise to secure pens and other round items onto the work table.
Add Text and Graphics with High Speed and Precision
The MPX-90 is a high-speed imprinting device supporting four imprinting modes: Text mode, Photo mode, High Density mode for detailed letters and illustrations, and Vector mode for linear letters and outlines. With 2.5 times the imprinting force of the previous model, the MPX-90 can imprint even the smallest text and images clearly on textured surfaces.
Includes Easy-to-Use Design Software
The MPX-90 comes with METAZA Studio, easy-to-use design software for great results. METAZA Studio accepts artwork, designs and photos from a wide variety of sources including digital cameras, mobile phones, bmp, jpg or Adobe® Illustrator® 7/8 ai or eps files. With the MPX-90, you can choose from a selection of TrueType fonts or create your own single-stroke or fill fonts. For added impact, you can wrap text around an arched line or the contours of your design. Dr. Engrave software uses variable data created in txt. or csv files to produce serial number plates for product identification and tracking.
Katalog ROLAND MPX-90 0.38MBdownload file
ROLAND MPX-90 Options
|Head unit and head caps for replacement||MPH-90||Head unit x 1 and head caps x 4 pcs.|
|Cap head for replacement||CAP-HEAD MPX-90||5 pcs.|
ROLAND MPX-90 Specifications
|Imprintable material||Gold, silver, copper, platinum, brass, aluminium, iron, stainless steel, etc. (Vickers hardness [HV] of the printing surface must be 200 or less.)|
|Loadable material size||Maximum 100 mm (width) x 200 mm (length) x 40 mm (thickness), or 200 mm (width) x 100 mm (length) x 40 mm (thickness) (3.9 in. x 7.9 in. x 1.5 in.), or (7.9 in. x 3.9 in. x 1.5 in.)|
|Printing area||80 mm x 80 mm (3.1 in. x 3.1 in.)|
|Resolution||529 dpi (High resolution), 353 dpi (Photo), 265 dpi (Text), 1058 dpi (Vector)|
|Printing direction||Unidirectional printing or bidirectional printing (Selectable with Windows driver)|
|Printing speed (Default)||50 mm/sec (1.9 in./sec) (Photo), 33 mm/sec (1.2 in./sec) (High resolution/Text), 24 mm/sec (0.94 in./sec) (Vector)|
|Connectivity||USB (compliant with Universal Serial Bus Specification Revision 1.1)|
|Power requirements||Dedicated AC adapter: AC 100V to 240V ±10% 50/60Hz|
|Machine: DC19V 1.6A|
|Power consumption||Approx. 24W|
|Acoustic noise level||Under 70 dB (A)|
|Environmental||Temperature: 10 to 30°C (50 to 86°F), Humidity: 35 to 80% (no condensation)|
|Dimensions||286 mm (W) x 383 mm (D) x 308 mm (H)
(11.3 in. (W) x 15.1 in. (D) x 12.2 in. (H))
|Weight||10.8 kg (23.8 lb.)|
|Included items||AC adapter, power cord, head caps, center vise, adhesive sheet, test-use printing material, USB cable, Roland software CD-ROM, and user’s manual, etc.|
System requirements for included software: METAZAStudio
|System requirements for included software: METAZAStudio|
|Operating system||Windows® 7 Professional (32-bit or 64-bit); Windows Vista® Ultimate (32-bit), Business (32-bit or 64-bit) or Home Premium (32-bit); Windows® XP Home Edition or Professional|
|CPU||At least Pentium® 4 3.0 GHz or more recommended|
|RAM||At least 512MB or more recommended|
|Video card and monitor||At least 16 bit colors (High Color) with a resolution of 800 × 600 or more recommended|
|Free hard-disk space||25MB|
|Optical drive||CD-ROM drive|
